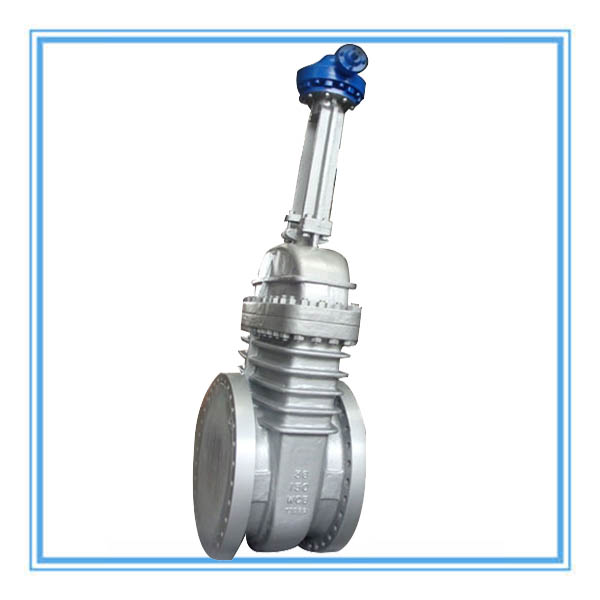

American standard cast steel gate valve

Flange connection API American standard cast steel gate valve is suitable for ANSI Class 150～2500, working temperature, <600°C oil, chemical, thermal power station and other working conditions, cut or connect the pipeline medium. Technical Parameters:

Design and manufacture: API 600

Structure length: ANSI B 16.10

Pressure temperature rating: ANSI B 16.34

Test and inspection: API 598

Size: 2 inches ---- 48 inches

Pressure: Class 150～2500Lb

Material: carbon steel, stainless steel, etc.

Applicable medium: water, oil, steam, etc.

The operation modes are: manual, gear transmission, electric, pneumatic and so on.
