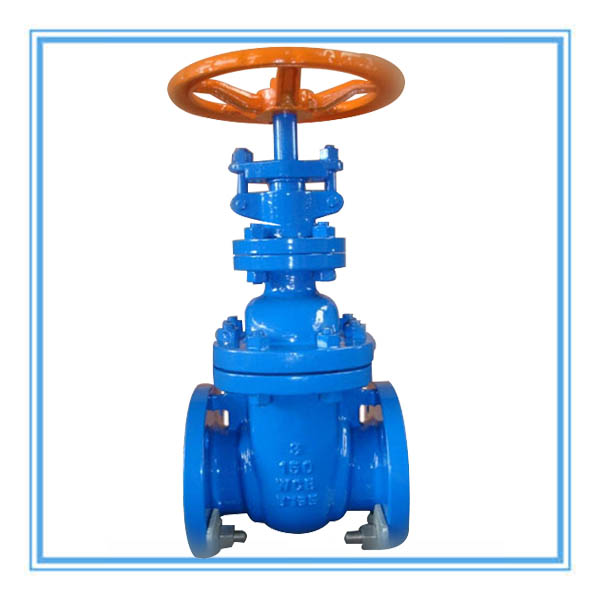

American standard cast steel gate valve

Technical Parameters:

Design and manufacture: cast steel gate valve according to API600 (ISO 10434), API 6D; stainless steel gate valve according to API 603, API 600; inspection and test: API 598, API 600 or API 6D

Flange connection: ASME B16.5 (for NPS ≤ 24, ASME B16.47 B series, API 605, ASME B16.47 A series, MSS SP-44 (for NPS> 24)

Butt end: ASME B16.25

Socket weld end: ASME B16.11

Structure length: ASME B16.10

Temperature and pressure rating: ASME B16.34

Size: 2 inches ---- 48 inches

Pressure: Class 150～2500Lb

Material: carbon steel, stainless steel, etc.

Applicable medium: water, oil, steam, etc.

The operation modes are: manual, gear transmission, electric, pneumatic and so on.
